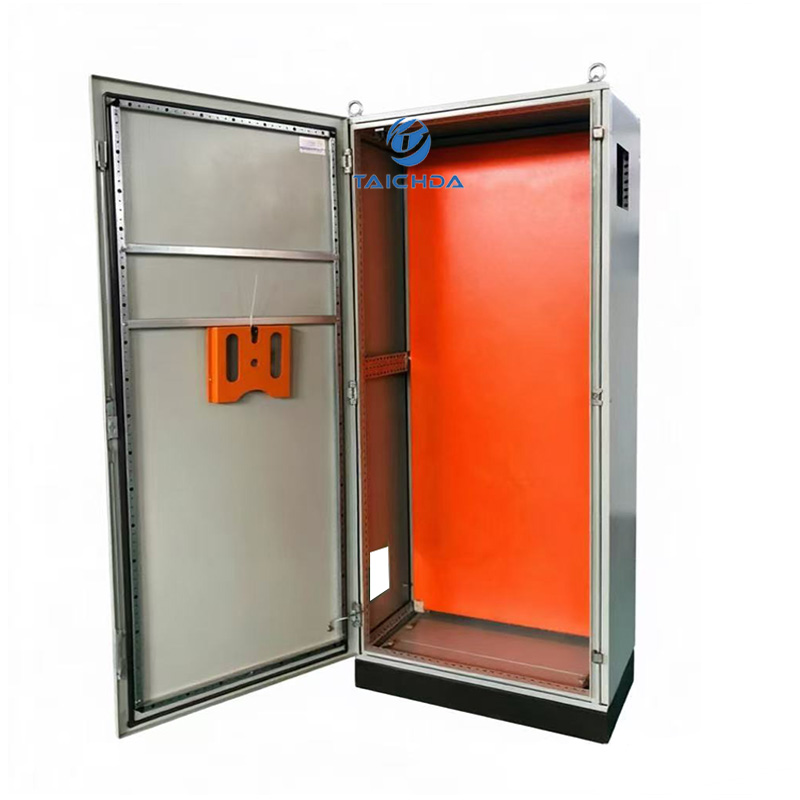

Custom Sheet Metal Rittal‑Type Electrical Control Cabinet
This Rittal‑style floor‑standing control cabinet is fabricated from high‑quality cold‑rolled steel sheets,which is laser cut, CNC bent, and precision welded. Vertical floor structure with lifting rings at the top for easy lifting and handling. The door frame is fitted with a full‑perimeter PU hair foam sealing strip , achieving an IP55 protection grade. Lifting eyes on the top facilitate hoisting and transportation; the solid black base protects the cabinet bottom. The internal detachable mounting plate and adjustable mounting cross‑members enable flexible arrangement of components. The door panel is equipped with reinforced mounting brackets, and reserved ventilation slots on the sides serve heat dissipation purposes.
Product Number: 0073-EPCC-TCH
Custom Sheet Metal Rittal‑Type Electrical Control Cabinet
Rittal‑Type Electrical Control Cabinet This Rittal‑style floor‑standing control cabinet is fabricated from high‑quality cold‑rolled steel sheets,which is laser cut, CNC bent, and precision welded. Vertical floor structure with lifting rings at the top for easy lifting and handling. The door frame is fitted with a full‑perimeter PU hair foam sealing strip , achieving an IP55 protection grade. Lifting eyes on the top facilitate hoisting and transportation; the solid black base protects the cabinet bottom. The internal detachable mounting plate and adjustable mounting cross‑members enable flexible arrangement of components. The door panel is equipped with reinforced mounting brackets, and reserved ventilation slots on the sides serve heat dissipation purposes. It is widely applied in PLC automation, frequency converters, power distribution and industrial equipment control. OEM & ODM services are supported, including custom overall Dimensions, opening size, color, internal accessories,and Logo printing.
|
Product Number |
0073-EPCC-TCH |
|
Type |
Electrical Control Cabinet |
| Material |
Cold Rolled Steel / SS304 /SS316 Stainless Steel (The installation plate is galvanized sheet) |
|
Protection Grade |
IP55 |
|
Surface Treatment |
Powder coated |
|
External dimensions |
1000*1000*800 mm (Custom sizes available) |
|
Lead Time |
Within 20-25 day , depending on order quantity |
|
Shipping |
Choose international express delivery, sea freight, air freight, etc. according to customer needs |
Product Features:
1.Adopt High‑strength cold‑rolled steel , high load‑bearing capacity, not easy to deform after long‑term use.
2.Full‑perimeter PU hair foam sealing strip around door frame, excellent dust‑proof and splash‑proof performance, adapt to harsh indoor workshop environment.
3.Built-in bright orange galvanized mounting plate, adjustable vertical mounting rails.
4.Lifting eyes on cabinet top for hoisting and transportation. Solid black base protects cabinet bottom against collision and moisture.
5.Reserved side ventilation slots, can install cooling fan as required, effectively dissipate heat for inverter and heat‑generating electrical parts.
6.Equip Heavy‑duty anti‑rust hinges, industrial metal lock , protect internal electric components from unauthorized access.
Application
PLC automation control system, industrial power distribution, machine tool electrical box, conveyor control system, packaging equipment control, factory automation integration.
Our advantages:
Our carbon steel electrical control boxes are fabricated from high-quality cold rolled carbon steel. The surface adopts electrostatic powder coating treatment, featuring good rust-proof, dust-proof and impact-resistant performance.Widely applied in factory automation, power distribution and mechanical equipment control.
Carbon Steel Series Electrical Control Box We Manufacture:
Stainless steel electrical control boxes, optional SS304 / SS316 material. With excellent waterproof, rust and corrosion resistance, it works well in outdoor, coastal, humid and chemical environments.
Stainless Steel Series Electrical Control Box we manufacture:
We“Zhangzhou Taichengda Metal Products Co., Ltd.” is a sheet‑metal manufacturer & trading company with independent export qualifications, providing professional OEM customization services.With 20‑years of production and processing experience, our products have passed multiple authoritative certifications including ISO, SGS, CCC, CE and IP65.We specialize in custom‑made various metal cabinets and enclosures,covering electric control panel cabinets, switch button control cabinets, IP NEMA enclosures, RITTAL power control cabinets, distribution panel boxes, high and low voltage distribution cabinet, UPS power supply cabinet, power boxes, instrument case, meter boxes, console boxes , electrical operator tables，soap dispenser, paper towel dispenser, trash can,used clothes recycling bin,etc.Our product quality is superior,items are widely exported to the United Kingdom, the United States, Canada, Australia and other countries all over the world.
Our Production Workshop：
Our workshop is equipped with advanced laser cutting machines, CNC bending machines, welding machines and powder coating lines.We have strong production capacity for both mass bulk orders and small-batch custom orders.
We with 20 years of mature sheet metal manufacturing experience, follow standardized production procedures. Our complete workflow covers raw material selection, laser cutting, CNC punching, bending, welding, grinding & polishing, surface treatment, assembly, packing and shipment to ensure full-process quality control.
Production Process：
Our Warehouse：
We have standardized warehouse for raw materials and finished goods. Finished control boxes will be neatly stored before delivery.
After surface treatment is completed, we carry out the assembly of cabinet accessories. Hinges, door locks, sealing strips, mounting rails and other fittings are installed on the box body one by one.
Finished Product Assembly：
Standard Export Packaging
Adopt Pearl cotton + cardboard box + plywood tray packaging ,The loaded in strict accordance with export standards.Pearl cotton for shock absorption and surface scratch prevention, packed in cardboard box, then loaded on plywood tray, to ensure goods arrive at destination intact and undamaged.
FAQ
Q1. Can you customize cabinet dimensions and door cut-outs?
A: Yes, we provide full OEM customization. Please send us your drawings or specifications..
Q2. Can I get other colors instead ?
A: We support any standard RAL color for powder coating.
Q3. May I have a sample first?
A: Yes, we would like to make sample for your checking first. Mixed samples are acceptable.
Q4. What about the lead time?
A: It needs 3-5 working days for sample, 20-25 working days for bulk order usually.
Q5. Do you have any MOQ for order?
A: Low MOQ, it's according to the request of different products.
Q6. Can you customize the metal products according to my design and make my own brand logo?
A: Yes. We are the sheet metal fabrication manufacturer, we can do the custom production. Please kindly send us your detailed request (drawing, photos etc.), so we will make according to you design. As brand logo, we usually do by silk screen, laser etching etc., please tell us the style and sizes for our making.
Q7. What is the quality control do you have?
A：All products have to pass strict inspection before they were sent out. We believe that the quality is the soul of an enterprise. Therefore, we always put quality as the first consideration.
Q8. How do you confirm product accuracy before production?
A： We will make production drawings for customer confirmation prior to formal production. Mass‑production starts only after receiving your confirmation.
Q9. Which countries do your products export to?
A: Our products have been exported to the United Kingdom, the United States, Canada, Australia and many other countries around the world.
Q10. What certifications do your products have?
A: Our products are available with CE and RoHS,IP65 certifications, complying with EU requirements.
Q11. What shipping methods are available for your goods?
A： We can select international express(DHL, UPS, FedEx, TNT etc.), sea freight, air freight and other shipping solutions based on customer requirements.
